- 單位名稱： 通裕重工股份有限公司
- 手機號碼：
- 產品名稱： ASTM大型鍛造管板forged disc
- 材質型號： 通裕
- 供應地址： 山東省德州（禹城）國家高新技術產業開發區

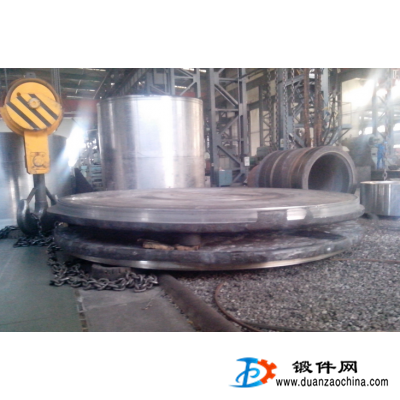

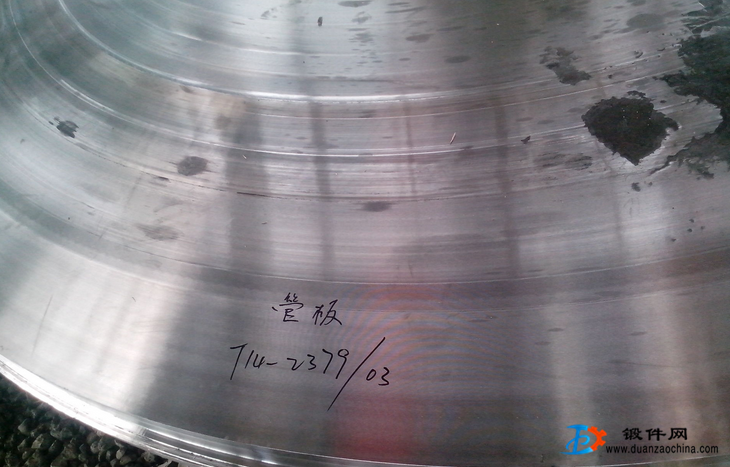

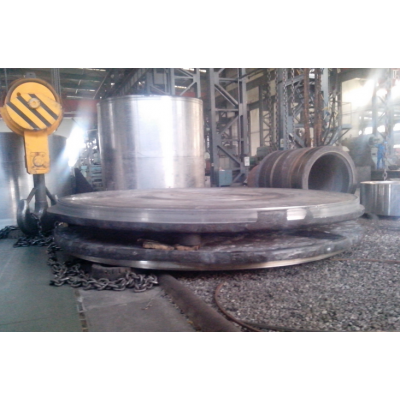

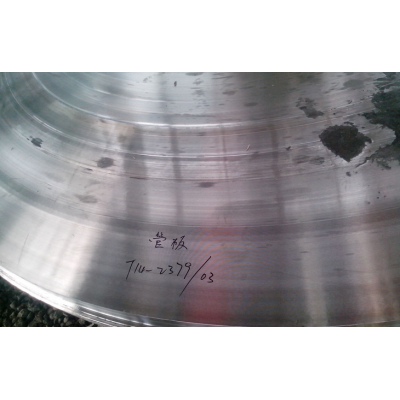

ASTM大型鍛造管板forged disc
ASTM Heat Treatment 20MnMoNb Alloy Steel Disc Forging Heat Exchanger Tube Sheet
Description:
Disc forging-tube sheet is widely used for pressure vessel, power station and other industries.
The disc forging conforms to the standard of EN, ASTM DIN and JB4730 etc.
The manufacturing equipment is 16~185MN hydraulic press, the forging ratio >4.5, the technical condition is in accordance with the standard of EN, ASTM DIN and JB4730 etc.
The disc forging can be provided as per your drawing or specified requirements.
Smelting Process:EF+LF + VDThe process as follow :Ingot →heat → forging → Heat treatment (Normalizing+ tempering) → Inspection →rough machining→UT→2nd Heat treatment →finishing machining →Inspection
Applications: Disc forging-tube sheet is widely used for pressure vessel, power station and other industries.
Specifications:
|
Description |
Disc forging |
|
material |
Alloy steel (20MnMo, 16Mn, 20MnMoNb etc.) |
|
Material standard |
ASTM or GB/T3077-1999 |
|
Dimension |
Max.OD: 5000mm Max. thickness: 1500mm |
|
Weight |
Max. 150 ton |
|
Smelting Process: |
EF+LF + VD |
|
Process |
Ingot→heat → forging → Heat treatment (Normalizing+ tempering) → Inspection →rough machining→UT →2nd Heat treatment → finishing machining →Inspection |
|
UT standard |
EN, ASTM DIN and JB4730 |
Competitive Advantage:
Quality control and management to the whole produce process, including ingot smelting, forging, heat treatment, machining and strictly final inspection prior to delivery.
Excellent product quality and service, competitive price, “in-time” delivery
Quality control and management to the whole produce process, including ingot smelting, forging, heat treatment, machining and strictly final inspection prior to delivery.
Excellent product quality and service, competitive price, “in-time” delivery
